Servo drive brushless SBD stand alone
CMZ produces and offers a variety of servo drives for motion control applications.
SBD is the new CMZ brushless standalone drive, featuring Italian best technology for versatility and connectivity.
Smart Drive with integrated PLC
Programmability IEC 61131-3 with 2 possibilities of use:
- SBD in PLC version allows the machine decentralization giving control functions directly on-board, by integrating the controller
- Combined with RP064IO expansion peripheral and a HMI panel, SBD drive in PLC version allows to independently manage the full automation of the machine, by determining no need for controller (in some types of applications).
SBD is suitable to be used both with CMZ FCT controllers and other different-branded controllers using CODESYS 3.5.
Range from 5 A to 20 A (230 Vac and 400 Vac)
All built-in: filters, braking resistors, power supply, grid protection
230V or 400V in one case
Cost-effective solution
UL for SBD-M (with integrated functions for protection of users and systems)
Developed and Made in Italy.

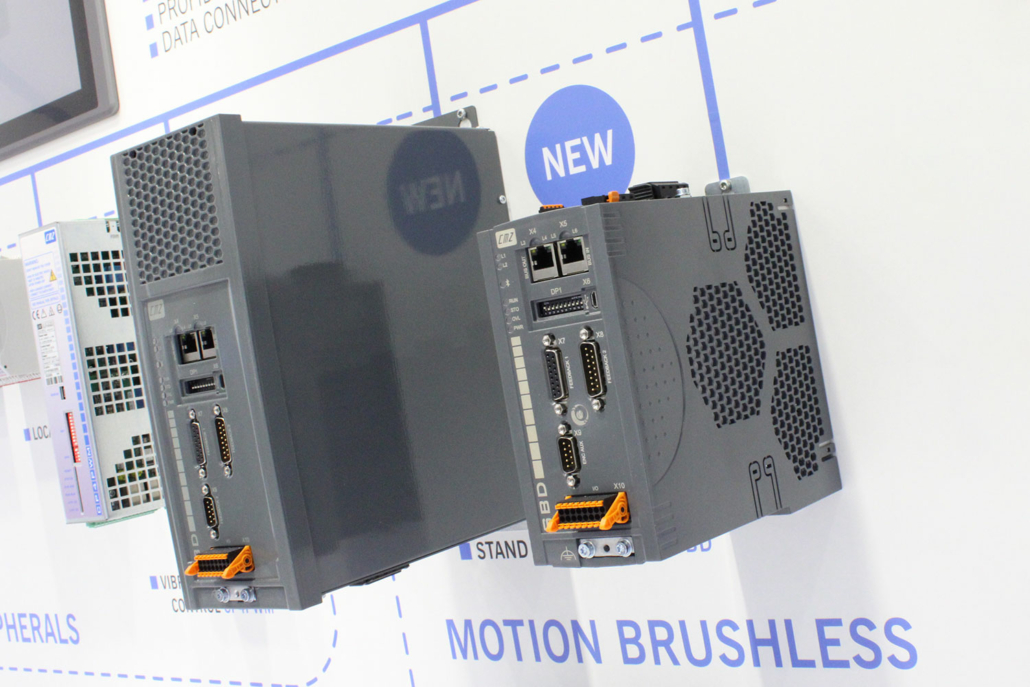

Dimensions size M (mm): H 178,3 x W 83,6 x L 189,2 Weight 1,8 Kg
Dimensions size L (mm): H 270 x W 105 x L 232 Weight 4,8 Kg
Magazine Drives & Controls (UK) October 2023
Review from a customer on LinkedIn 22.11.2021
Review from a system integrator on LinkedIn 20.06.2022
TECHNICAL SPECIFICATIONS
Follow a manual added link
PROFINET
SBD can be supplied with PROFINET fieldbus.
Click for the White Paper
FIELDBUS
EtherCAT
CANopen
PROFINET
POWER SUPPLY
Without external contactor
I/O MODULES
Integrated 7 DI – 3 DO – 1 AI – 1 AO
FEEDBACK
Absolute Hiperface / Resolver / Incremental with HES
APPLICATIONS
Multi-axis application based on CODESYS controller and SBD CODESYS driver
OR
Standalone application without controller (SMART DRIVE), based on integrated programmability IEC61131 (ST language)
CONFIGURATION & TUNING
Advanced Configuration & Tuning functionalities on SDSetUp
Does SBD fit your project? Try the drawing 3D
