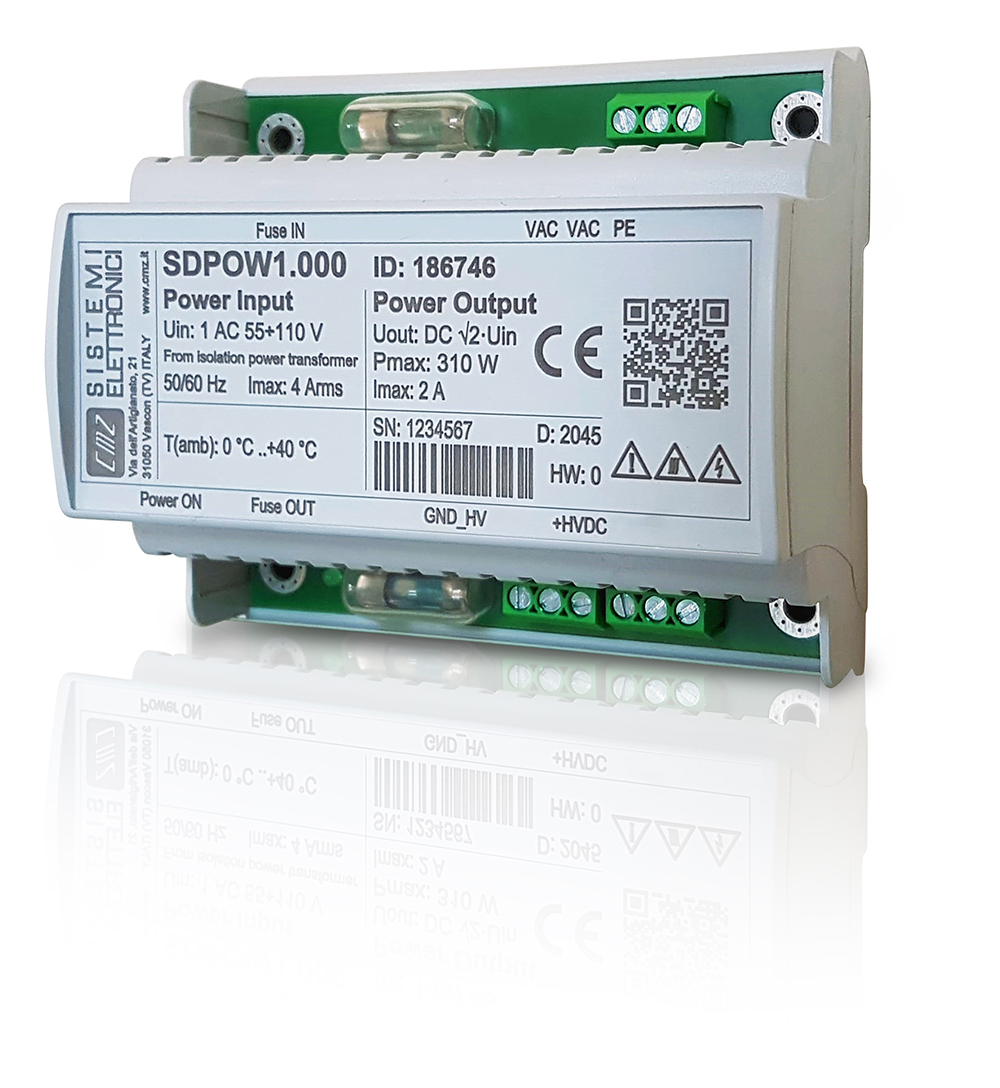

Power supply SDPOW1
SDPOW1 is the CMZ AC/DC power supply designed as industrial upgrade for its stepless devices:
ISD integrated stepless drive
SVM stand-alone stepless drive
to replace the previous SDPOW0 entry-level power supply.
It is a double half-wave rectifier single-phase AC/DC not isolated and not stabilized.
The extension of input/output voltage and output current ranges, as well as a modern design complying with current industrial automation standards, make it a competitive product combining performance and cost-savings.
ELECTRICAL FEATURES
POWER SUPPLY TIPOLOGY
Double half-wave rectifier single-phase AC/DC NOT ISOLATED and not stabilized
INPUT SUPPLY
Direct connection with isolation transformer (500VA max)
INPUT FEATURES
HV_IN (X1)
from 55 Vac to 110 Vac
FREQUENCY HV_IN
50/60 Hz
PROTECTION INTERNAL FUSE
10 A delayed
OUTPUT FEATURES
HV_OUT (X2-X3)
Rectified and smoothed voltage starting from the HV_IN voltage (typ. 75 ÷ 155 Vdc)
IDC_OUT
2A continuous @ Tenv.=40°C
V RIPPLE (TYPICAL)
≤ 3% HV_OUT
CAPACITY HV_OUT
4400 μF
PROTECTIONS HV_OUT
Short-circuit
PROTECTION INTERNAL FUSE
8A delayed
OTHERS
INSTALLATION
Vertical on DIN guide
CONNECTIONS
Screw connectors on the board
WIRES SECTION
Stranded 0.14 mm² ÷ 1.5 mm²
DISSIPATED POWER
Typ. 5W @IDC_OUT= 2 A
