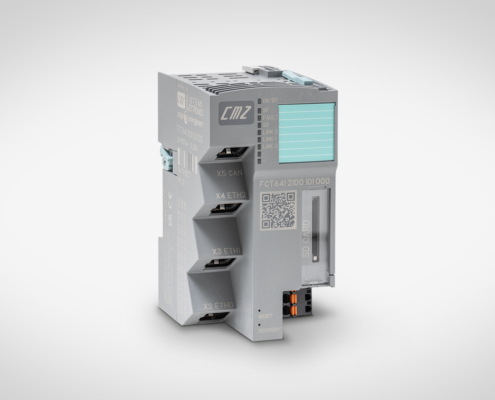

FCT641 Controllore programmabile modulare
Il nuovo controllore FCT641 rappresenta l’evoluzione della serie FCT640 sfruttando al massimo tutte le funzionalità del mondo CODESYS, per un controllo innovativo dei sistemi di automazione industriale ai massimi livelli di performance.
Basato su LINUX OS, il controllore FCT641 è predisposto all’installazione dei Service Pack CODESYS con accesso a tutti gli aggiornamenti e alle funzionalità di Codesys.
LINUX OS permette inoltre un file system sicuro e la gestione dei Certificati di sicurezza.
FCT641 può essere fornito con le seguenti Single Licenses di CODESYS installabili in fase d’ordine:
OPC-UA
EtherNet/IP
PROFINET
FSoE

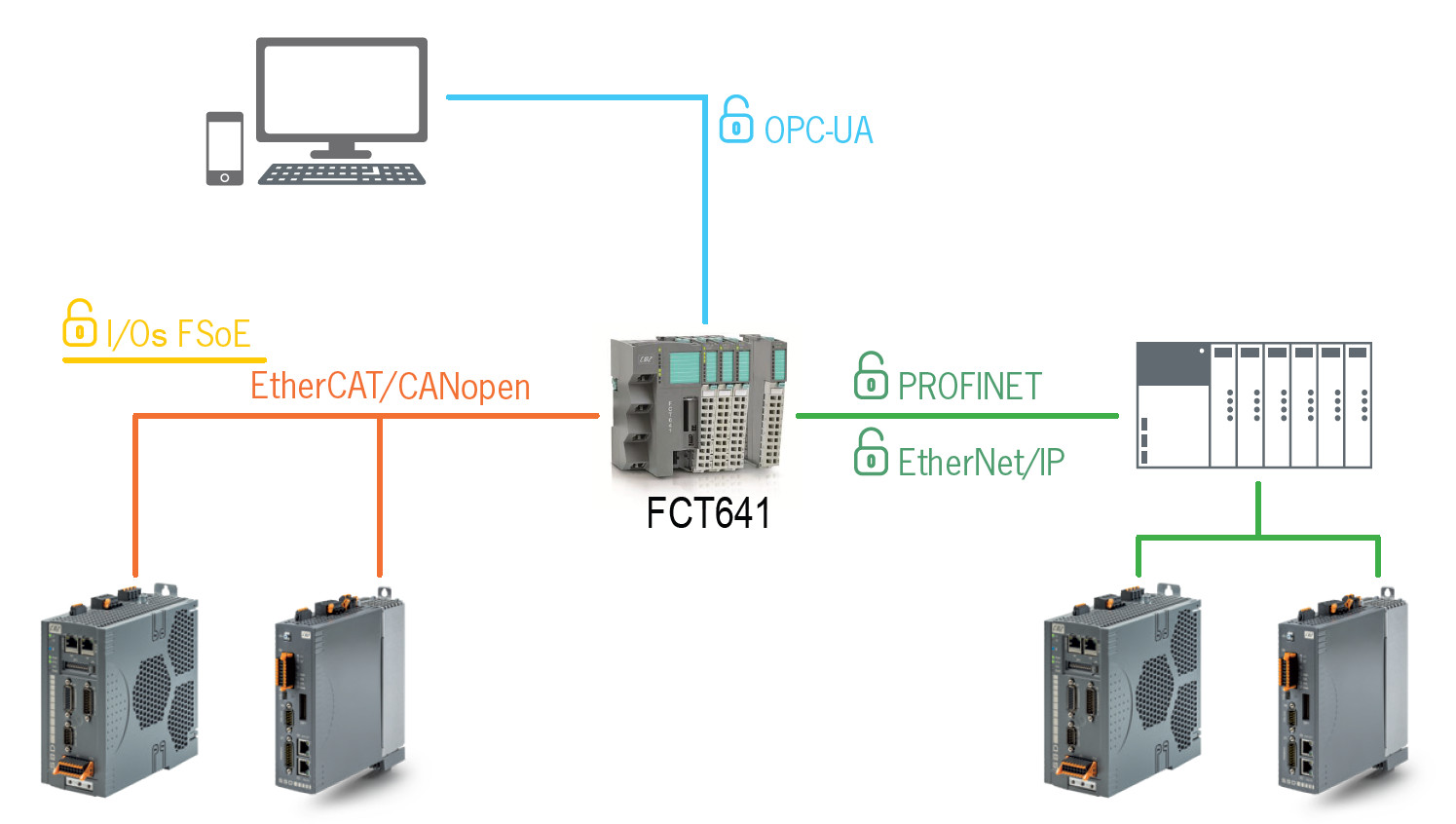

Con il controllore FCT641, la connettività si espande per il controllo completo di ogni tipologia di automazione.
Dimensioni mm: H 110 x W 57 x D 73. Peso gr: 300
SPECIFICHE TECNICHE
PROCESSOR
POWER SUPPLY
MEMORY
CAPABILITY
1GB Nand flash for storage
512 MB DRAM high bandwidth 64 bit 1666 MT/s
32 KB Ferromagnetic RAM (non-volatile PLC data)
SD-Card
COMMUNICATION
PORTS
1xRJ45 Ethernet 10/100 MBit TCP/IP (Debug)
2xRJ45 Ethernet 10/100 MBit (Fieldbus)
1xRJ45 CAN-Bus (CANopen Master)
INTEGRATED I/Os
64 modules, each with a max of 16-bit IO (1024 digital) or 8 channel analog (512 analog)
Big variety of modules available
FIELDBUS
EtherCAT
CANopen
NETWORK
CONNECTIVITY
OPC-UA
Modbus TCP
Communications based on UDP-TCP
WEB Server
PLCHandler
GENERAL FEATURES
9 LEDs
RTC with CR2032 Battery
Reset-Button / Restore-Button
0° / 40°C ambient temp.
Fanless
SOFTWARE
FEATURES
IEC61131 environment CODESYS
CMZ motion libraries
CMZ applicatives
